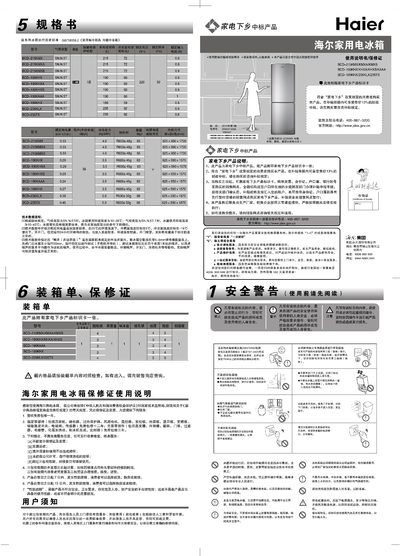

This manual provides step‑by‑step instructions for installing, operating, and maintaining Haier BCD series refrigerators. It includes safety guidelines, power requirements, temperature control settings, and cleaning procedures.
The document also details warranty coverage, service options, and troubleshooting tips for common issues such as noise, temperature irregularities, and power supply problems. This manual is written in Chinese.
| Refrigerant | R600a 48 g |
|---|---|
| External Dimensions | 625 mm × 590 mm × 1720 mm |
| Power Supply | 220 V / 50 Hz, grounded three‑pin plug |
The refrigerator must be connected to a 220 V / 50 Hz grounded outlet with a three‑pin plug; if voltage fluctuates beyond 187‑242 V, a stabilizer of at least 750 W should be used.
Loud noises at start‑up are normal as the compressor and relay engage; the sound will decrease once the system stabilises.
