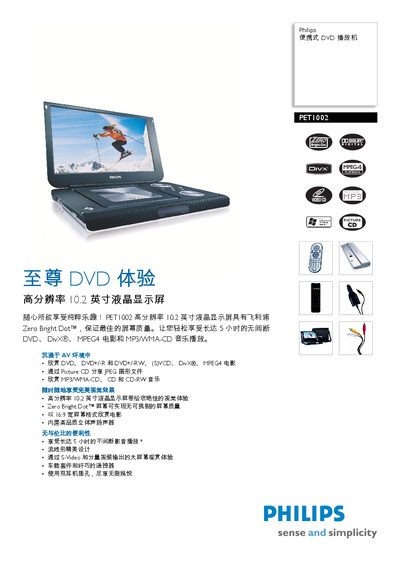

This document introduces the features and characteristics of the Philips PET1002 portable DVD player, including a high-resolution 10.2-inch LCD display, support for various video and audio playback formats, and built-in stereo speakers.
The Philips PET1002 is a portable DVD player featuring a 10.2‑inch LCD TFT screen with high brightness (Zero Bright Dot) and a built‑in 250 mW RMS speaker plus a 3.5 mm stereo headphone jack. It supports DVD, CD, MP3, WMA, Dolby Digital and a range of video formats such as MPEG‑4 and DivX.
This manual covers the device’s technical specifications, supported media and audio formats, connectivity options (AV composite, S‑Video, headphone), power requirements (9 V DC or 110‑240 V AC/DC adapter), physical dimensions, packaging details and remote‑control functions. This manual is written in Chinese.
| LCD panel type | LCD TFT |
|---|---|
| Resolution | 800 × 480 × 3 (RGB) |
| Brightness | 200 cd/m² |
| Viewing angle | 222.0° × 33.2° |
| Pixel pitch | 0.1905 mm × 0.1905 mm |
| Response time | 30 ms |
| Built‑in speaker power | 250 mW RMS |
| Headphone output power | 10 mW RMS |
| Headphone SNR | >80 dB |
| Speaker SNR | >62 dB |
| Supported video formats | DVD, Picture CD, SVCD, Video CD, DVD‑R/RW, DVD+R/RW, CD‑R/RW |
| Supported audio formats | Dolby Digital, MP3, WMA |
| File system support | ISO‑9660, Joliet |
| DC power input | 9 V |
| AC/DC adapter | 110‑240 V, 50/60 Hz |
| Dimensions (W × H × D) | 420 mm × 285 mm × 470 mm |
| Weight | 1.2 kg |
| Packaging dimensions | 392 mm × 156 mm × 258 mm |
| Number of speakers | 3 |
It supports DVD, Picture CD, SVCD, Video CD, DVD‑R/RW, DVD+R/RW and CD‑R/RW.
It provides AV composite (CVBS) output, S‑Video output, and a 3.5 mm stereo headphone jack for audio.
The player can be powered by a 9 V DC input or an AC/DC adapter that accepts 110‑240 V, 50/60 Hz.
