DC-2010C intelligent ultrasonic thickness gauge adopts micro processor technology and ultrasonic measurement principle to measure thickness and velocity of metals and other materials.

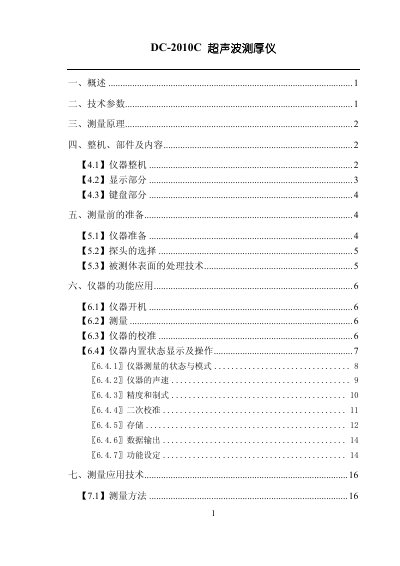

The DC-2010C is an intelligent ultrasonic thickness gauge that uses a micro‑processor and ultrasonic principle to measure the thickness and sound speed of metals and other materials. The manual covers device overview, technical parameters, measurement principles, hardware layout, preparation steps, functional operation, measurement techniques, and maintenance.
Key sections include detailed specifications, probe selection, measurement modes, calibration procedures, data storage, and safety precautions. The document also lists standard accessories and provides a reference table of material sound speeds. This manual is written in Chinese.
| Display | 128x64 LCD with backlight |
|---|---|
| Measurement range | 0.7 mm – 350.0 mm |
| Accuracy | ±0.1 mm (>100 mm) / ±0.01 mm (<100 mm) |
| Sound‑speed range | 1000 – 9999 m/s |
| Measurement speed | Normal 4 times/s, High‑speed 10 times/s |
| Auto power‑off time | 1 min / 3 min / 5 min |
| Power source | 2 × AAA batteries (≥48 h continuous operation) |
| Operating temperature | -20 °C – 60 °C |
| Storage temperature | -20 °C – 50 °C |
| Dimensions (L×W×H) | 116 mm × 64 mm × 27 mm |
| Weight (incl. batteries) | 220 g |
| Optional probes | D5008, D5113, D7006, D7004, D2012 |
The device can measure thickness from 0.7 mm up to 350.0 mm.
In normal mode it measures 4 times per second, and in high‑speed mode it measures 10 times per second.
It is powered by two AAA (七号) batteries and can operate continuously for at least 48 hours.
