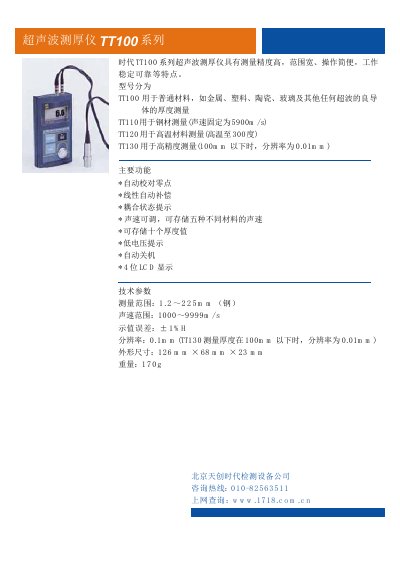

The TT100 series ultrasonic thickness gauge from TT100 Era has high measurement accuracy, wide range, easy operation, and stable and reliable performance. Its main functions include automatic zero calibration, linear automatic compensation, and coupling status indication. The measuring range is 1.2-225mm (steel) with a sound velocity range of 1000-9999m/s.
The TT100 series ultrasonic thickness gauge measures material thickness with a range of 1.2 mm to 225 mm and a measurement speed of 1000 m/s to 9999 m/s. It features a 4‑line LCD display that shows measurement results, unit selection, and other parameters.
The device weighs 170 g and its dimensions are 126 mm × 68 mm × 23 mm. Accuracy is ±1 % (±0.1 mm resolution, with the TT130 model offering 0.01 mm resolution). The manual also covers safety precautions, operation steps, and maintenance guidelines. This manual is written in Chinese.
| Measurement range | 1.2 mm – 225 mm |
|---|---|
| Measurement speed | 1000 m/s – 9999 m/s |
| Resolution | 0.1 mm (TT130 0.01 mm) |
| Dimensions | 126 mm × 68 mm × 23 mm |
The TT100 can measure thickness from 1.2 mm up to 225 mm.
