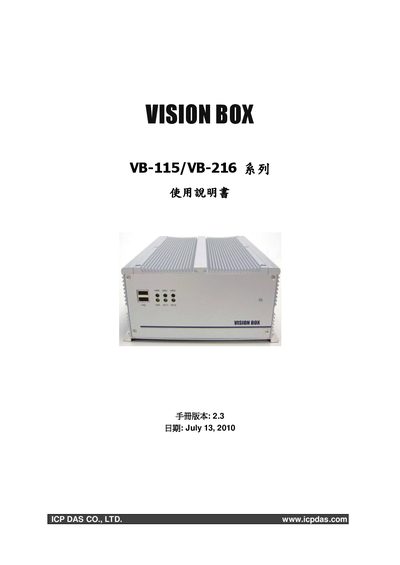

This document introduces the features and characteristics of the VISION BOX VB-115/VB-216 series products produced by ICP DAS, including fanless cooling design, low power consumption processor, high-speed CF card operating system, dual Ethernet interfaces, and 32-bit PCI Bus expansion slots. This product is suitable for applications such as AOI optical inspection systems and high-speed image inspection systems.
This manual describes the Vision Box VB-115 and VB-216 series hardware, including CPU, memory, storage options, I/O ports, power supply, and environmental limits. It lists the physical dimensions, connector layout, and supported operating systems such as Windows XP Embedded.
The document also contains a quick‑start guide, power‑connection wiring, PCI/USB/Ethernet installation procedures, and contact information for regional ICP DAS support centers.
| CPU | Intel Mobile Celeron M 1.5 GHz |
|---|---|
| Memory | 2 GB DDR2 533 MHz |
| PCI Bus | 32‑bit / 33 MHz |
| USB Ports | 2 front + 4 rear USB 2.0 |
| Power Consumption | 120 W AC, 100‑240 V, 50/60 Hz |
| Operating Temperature | -10 °C to 50 °C |
| Dimensions | 195 mm × 268 mm × 107 mm (W × D × H) |
The Vision Box uses an Intel Mobile Celeron M processor running at 1.5 GHz.
It provides two USB 2.0 ports on the front panel and four USB 2.0 ports on the rear panel, for a total of six.
The unit operates on a 120 W AC supply, compatible with 100‑240 V, 50/60 Hz input.
The device can operate from –10 °C up to 50 °C.
