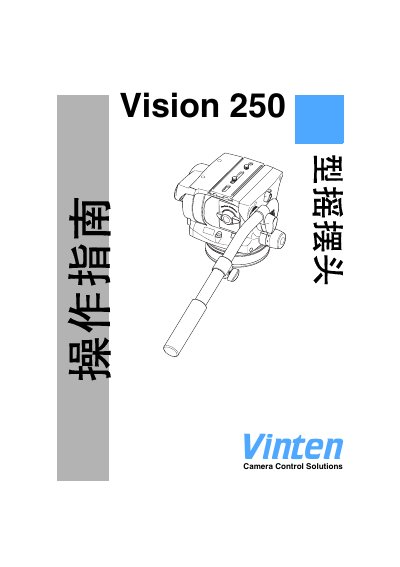

This manual provides installation, operation, balance adjustment and maintenance instructions for the Vinten Vision 250 pan/tilt head.
The Vinten Vision 250 pan/tilt head operating guide covers safety warnings, technical data, detailed installation steps, camera mounting, balance adjustment, brake and damping controls, and routine maintenance. It also includes information on battery replacement, digital display calibration, and base conversion kits.
The document lists part numbers for accessories and spare parts, and references the companion Vision 250 Maintenance Manual for more in‑depth service procedures. All content is presented in Chinese with reference to Vinten’s trademarks and contact information. This manual is written in Chinese.
| Weight (flat base with handle) | 6.05 kg (13.3 lb) |
|---|---|
| Height to support surface (flat base) | 184 mm (7.24 in) |
| Length | 159 mm (6.23 in) |
| Width | 244 mm (9.6 in) |
| Typical load capacity | 25 kg (55 lb) |
| Pan range | 360° |
| Tilt range | ±90° |
