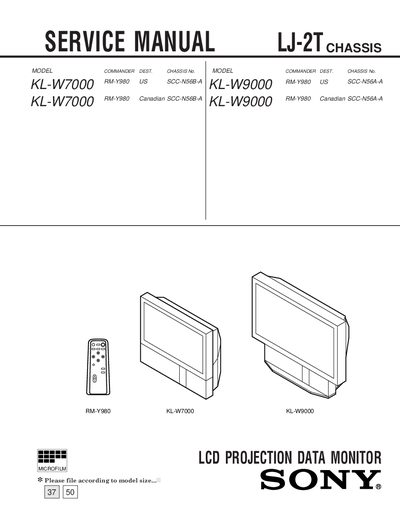

This document is a service manual for an LCD projection data monitor. The product comes in two models: 37 inches and 50 inches. It features a 3 LCD panel and 1 lens projection system, and supports NTSC video signal and RGB signal input.
This service manual provides detailed safety procedures, disassembly instructions, schematic diagrams, and parts lists for Sony's KL‑W7000 and KL‑W9000 LCD projection monitors. It also includes specifications, wiring diagrams, and guidance for installation and operation.
The document is organized into sections such as General, Disassembly, Exploded Views, Diagrams, Electrical Parts List, and Safety‑Related Component Warnings, helping technicians perform repairs and maintenance safely and efficiently.
| Screen size (KL‑W7000) | 37 inches (942 mm) diagonal |
|---|---|
| Screen size (KL‑W9000) | 50 inches (1 272 mm) diagonal |
| Resolution | 1.54 million dots (512 × 880 pixels) |
| Standby power consumption | 2 W |
| Dimensions (KL‑W7000) | 920 × 825 × 390 mm (W × H × D) |
| Dimensions (KL‑W9000) | 1 228 × 1 055 × 565 mm (W × H × D) |
| Audio inputs | 2 channels, 500 mVrms |
The monitor provides nine factory preset modes for common video standards.
