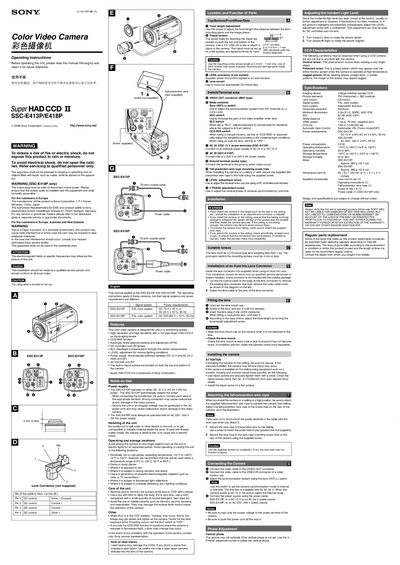

This manual covers the operating instructions for the Sony SSC‑E413P and SSC‑E418P color camcorders, including safety warnings, power requirements, and handling guidelines. It explains how to install the camera on walls or ceilings, secure it with the supplied fall‑prevention wire rope, and connect power and video cables.
Technical details such as the 1/3‑type interline transfer CCD, CS‑mount lens interface, PAL color system, and power options (DC 12 V or AC 24 V for SSC‑E413P, AC 220‑240 V for SSC‑E418P) are listed, along with environmental limits, dimensions, and recommended maintenance procedures.
| Imaging device | 1/3 type interline transfer CCD |
|---|---|
| Picture elements | 752 (horizontal) x 582 (vertical) |
| Lens mount | CS‑mount |
| Signal system | PAL color system |
| Sync system | Internal/AC line lock |
| Horizontal resolution | 540 lines |
| Minimum illumination | 0.3 lx (F1.2, 50IRE, AGC ON) |
| Signal‑to‑noise ratio | 50 dB (AGC OFF) |
| Power consumption | 3.5 W |
| Operating temperature | -10 °C to +50 °C |
| Operating humidity | 20 % to 80 % |
| Storage temperature | -40 °C to +60 °C |
| Mass (SSC‑E413P) | Approx. 360 g |
| Mass (SSC‑E418P) | Approx. 385 g |
The camera requires a minimum illumination of 0.3 lx (F1.2, 50 IRE, AGC ON).
The camcorder uses a CS‑mount lens interface.
