This document describes the features and characteristics of the Sony MZ-E80 portable mini-disc player.

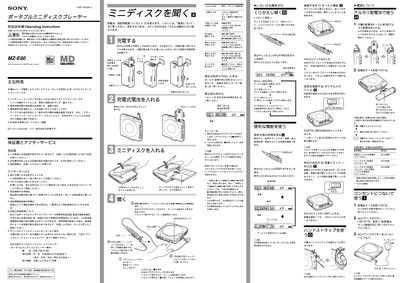

This manual explains how to operate the Sony MZ‑E80 MiniDisc player, including safety precautions, power options, and remote‑control functions. It also covers warranty information and how to obtain service support.
Detailed sections describe the main features, battery charging procedures, playback controls, and troubleshooting steps for common issues such as disc errors or low battery warnings. Technical specifications of the player are listed at the end of the document. This manual is written in Japanese.
| Reading method | Three‑contact optical (semiconductor laser) |
|---|---|
| Laser type | GaAIAs double‑heterojunction diode, 790 nm |
| Sampling frequency | 44.1 kHz |
| Frequency response | 20 Hz – 20 kHz (±3 dB) |
| Maximum output | 5 mW per channel |
| Rechargeable battery | Ni‑MH NH‑14WM (included) |
| Dry battery (optional) | 1× AA alkaline |
| External power jack | DC 1.5 V |
| Dimensions (W×H×D) | ≈81 mm × 187 mm × 83.5 mm |
When the battery reaches about 90 % charge the charging lamp turns off, indicating a full charge.
Press the PLAYMODE button on the remote control; each press cycles through normal, repeat all, single repeat, and shuffle repeat modes.
