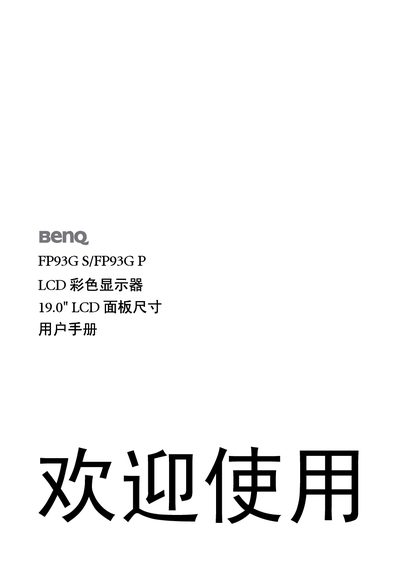

This document is a user manual for the FP93G S/FP93G P LCD Color Monitor, providing information on installation, usage, and maintenance of the monitor.
This manual provides step‑by‑step instructions for setting up and using the BenQ FP93G S and FP93G P 19‑inch LCD monitors. It covers unpacking, hardware installation, connecting video and power cables, mounting options, and basic configuration on Windows systems.
The guide also includes detailed sections on image optimization, OSD menu navigation, safety and maintenance, and a full specifications table. Troubleshooting tips and a FAQ section help resolve common issues such as resolution changes and refresh‑rate adjustments. This manual is written in Chinese.
| Screen size | 19.0" (active TFT) |
|---|---|
| Resolution | 1280 × 1024 |
| Contrast ratio (typical) | 800:1 |
| Brightness (typical) | 300 cd/m² |
| Response time (typical) | 5 ms |
| Power consumption (max, eco mode) | ≤ 40 W (standby < 1 W) |
| Input signals | DVI‑D (optional) and D‑Sub (15‑pin) |
| Dimensions (HxWxD) | 410.1 × 404.2 × 168.2 mm |
Follow the steps described in the manual (see page 18) to adjust the image resolution in Windows.
Use the procedure outlined on page 19 of the manual to modify the display refresh rate in Windows.
Turn off the monitor and unplug it, then wipe the screen with a soft, lint‑free cloth; avoid liquids or abrasive cleaners.
Yes, the monitor has a 100 mm VESA‑compatible mounting interface; follow the wall‑mount instructions in the manual.
