This document provides an installation and operation guide for the AC 500 Access and Alarm Server. It is intended for experienced engineers and includes an installation diagram, hardware installation guide, and software installation and operation information.

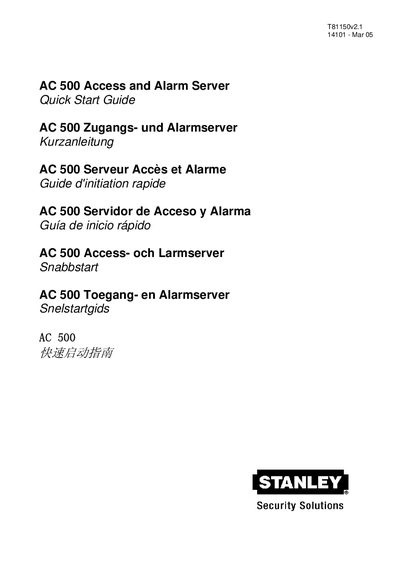

This Quick Start Guide is aimed at experienced engineers familiar with Stanley security products. It includes an installation diagram, wiring key, and references to the full installation guide on the supplied CD. Safety considerations for hardware installation and software configuration are also covered.
The guide explains the One‑Touch™ test mode for rapid verification of communication with controllers, describes the function of LEDs, tamper and override terminals, and provides wiring details for Ethernet, RS‑485, and power connections.
| Input voltage range | 10.5‑28.0 VDC |
|---|
Press and hold the One‑Touch™ button for 2 to 4 seconds.
Press the One‑Touch™ button for less than 2 seconds; the mode also times out automatically after 1 hour.
During the test the green system status LED flashes faster than normal.
