The Dell™ PowerEdge™ R610 server is a 2-socket 1U general-purpose server for enterprise data centers. It is designed for versatility and performance, and provides the virtualization, system management, and power efficiency features you need now and can grow with your business.
The PowerEdge R610 is a 1U rack‑mount server designed for data‑center and remote‑site use. It supports up to two Intel Xeon 5500 series processors, up to 96 GB of DDR3 memory across 12 DIMM slots, and offers a range of storage options including up to six hot‑swap 2.5‑inch SAS/SATA drives for a maximum internal capacity of 1.8 TB.

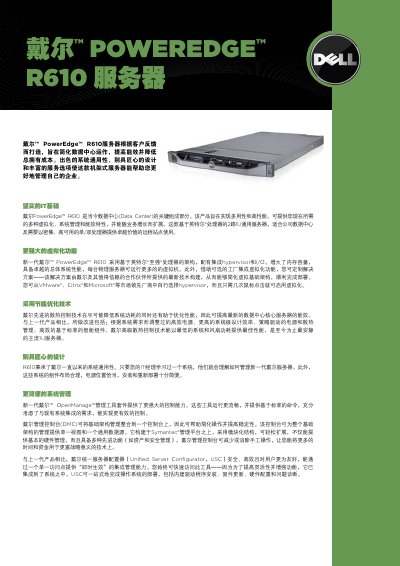

Management is provided through Dell OpenManage tools and the Unified Server Configurator, giving administrators a single console for hardware monitoring, firmware updates, OS deployment and diagnostics. The server ships with dual‑port Broadcom NetXtreme II 5709c gigabit NICs and optional 1 GbE/10 GbE adapters, and supports multiple operating systems such as Windows Server 2008, various Linux distributions and Solaris. This manual is written in Chinese.
| Form factor | 1U rackmount |
|---|---|
| Processor sockets | 2 |
| Maximum memory | 96 GB |
| Power supply options | 2× 500 W or 2× 750 W hot‑swap |
| Drive bays | Up to 6 × 2.5‑inch SAS/SATA hot‑swap drives |
| Network interface | Dual‑port Broadcom NetXtreme II 5709c gigabit NIC |
It supports up to two Intel Xeon 5500 series quad‑core or dual‑core processors.
The server can hold up to 96 GB of DDR3 memory using 12 DIMM slots.
Two hot‑swap 500 W or two hot‑swap 750 W high‑output power supplies are offered.
Supported OSes include Microsoft Windows Server 2008 with Hyper‑V, Novell SUSE Linux 10 SP2, Red Hat Enterprise Linux 5.2, and Sun Solaris 10.
