The Aruba AP-105 is an affordable 802.11n access point that is suitable for high-density deployments in offices, hospitals, schools, and retail stores. It supports 2.4-GHz/5-GHz wireless radios, and each wireless band can provide a link speed of up to 300Mbps. The AP-105 can be wall-mounted or ceiling-mounted, and it comes with a lifetime warranty.
The Aruba AP-105 is an indoor, dual‑band 802.11n access point designed for high‑density deployments in offices, hospitals, schools and retail environments. It offers up to 300 Mbps per wireless band, integrated 2×2 MIMO, and optional PoE or 12 V DC power.

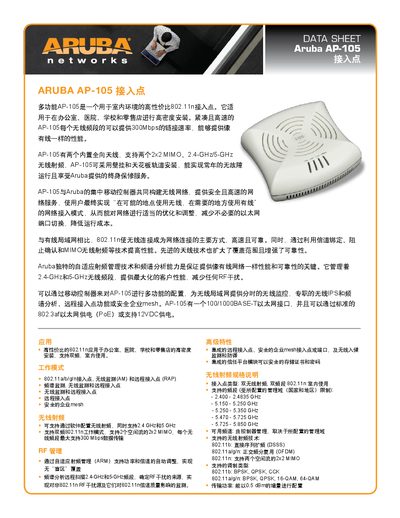

The sheet provides technical data such as maximum transmit power (23 dBm on both 2.4 GHz and 5 GHz), four built‑in omni antennas, a 1 × 10/100/1000BASE‑T Ethernet port, and a maximum power consumption of 12.5 W. Physical dimensions, mounting options, and regulatory certifications (FCC, CE, UL, etc.) are also listed. This manual is written in Chinese.
| Maximum TX Power (2.4 GHz) | 23 dBm |
|---|---|
| Maximum TX Power (5 GHz) | 23 dBm |
| Number of Antennas | 4 integrated omni antennas |
| MIMO Configuration | 2×2 |
| Maximum Data Rate per Band | 300 Mbps |
| Ethernet Interface | 1 × 10/100/1000BASE‑T RJ45 |
| Power Consumption (max) | 12.5 W |
| Device Dimensions | 132 mm × 135 mm × 45 mm |
| Regulatory Certifications | FCC, CE, UL, IEC, CB, KCC, etc. |
Each wireless band can provide up to 300 Mbps link rate.
Yes, it can be powered by 802.3af PoE or by a 12 V DC adapter.
The device measures 132 mm × 135 mm × 45 mm (5.2 × 5.3 × 1.8 in).
It is certified by FCC, CE, UL, IEC, CB, KCC, and other regional authorities.
