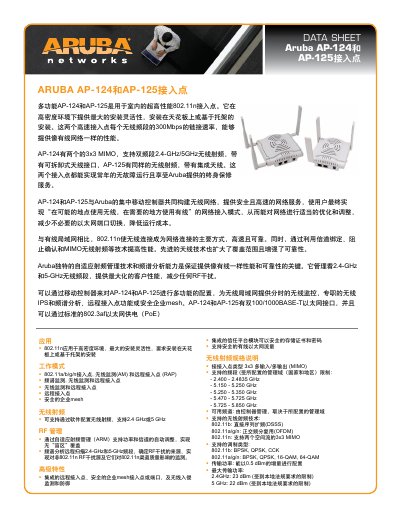

ArubA AP-124 and AP-125 are high-performance 802.11n access points for indoor use, providing maximum installation flexibility and performance. They support dual-band 2.4-GHz/5GHz wireless RF with detachable antenna interface or integrated antenna. These access points can achieve fault-free operation and enjoy lifetime warranty service. They work together with Aruba's centralized mobility controllers to build wireless networks that provide secure and high-speed network services. With 802.11n technology and advanced antenna technology, they provide fast and reliable wireless connections. Aruba's adaptive RF management technology and spectrum analysis capability ensure performance and reliability.
The Aruba AP-124 and AP-125 are high‑performance indoor 802.11n access points designed for high‑density environments. Both models support dual‑band 2.4 GHz/5 GHz operation with 3×3 MIMO and deliver up to 300 Mbps per band. They can be mounted on ceilings or on wall brackets and include features such as spectrum analysis, adaptive RF management, and enterprise‑grade security.
The document covers wireless RF specifications, power options (48 V DC via 802.3af/at/PoE+), antenna configurations (external RP‑SMA for AP‑124, integrated dual‑band antennas for AP‑125), mechanical dimensions, environmental limits, regulatory certifications, and warranty information. This manual is written in Chinese.
| Dimensions (W×D×H) | 124 mm × 130 mm × 51 mm |
|---|---|
| Weight | 0.42 kg |
| Maximum TX Power (2.4 GHz) | 23 dBm |
| Maximum TX Power (5 GHz) | 22 dBm |
| Ethernet Ports | 2 × 100/1000BASE‑T RJ‑45 |
| Power Options | 48 V DC 802.3af / 802.3at / PoE+ |
| Operating Temperature | 0 °C to 50 °C |
| Operating Humidity | 5 % to 95 % non‑condensing |
| Antenna (AP‑124) | Three RP‑SMA connectors for external antennas |
| Antenna (AP‑125) | Integrated three‑element dual‑band omnidirectional antenna |
| Maximum Link Rate per Band | 300 Mbps |
| MIMO Configuration | 3×3 MIMO |
Each band can deliver up to 300 Mbps link rate.
Each AP provides two 100/1000BASE‑T RJ‑45 ports.
The AP‑124 has three RP‑SMA connectors for external antennas.
They support 48 V DC via 802.3af, 802.3at, or PoE+.
