SITRANS LU 10 is a long-range transmitter that is used for the monitoring of liquids and slurries, providing 10-point monitoring in a single measurement unit. It can scan and measure any one to ten different sizes, shapes, and structures of containers for liquid or slurry liquid level measurements, up to 60m. The instrument uses ultrasonic technology to measure liquid level, space, distance, volume, or average/level difference. Ultrasonic sensors can be located up to 365m from the level meter. SITRANS LU 10 uses patented Sound Intelligence® software to guarantee reliable measurement. The reading is displayed on a backlit LCD screen, and the unit can be selected by the user in engineering units.
The SITRANS LU10 is a continuous‑measurement ultrasonic transmitter designed for liquid and solid level monitoring in tanks and containers. It can measure up to ten points per unit and is compatible with Dolphin Hus and SmartLinx systems.

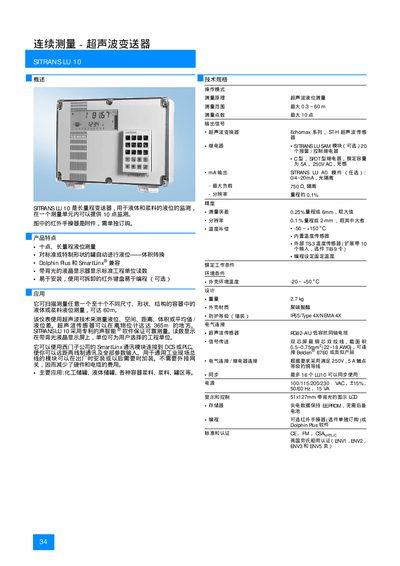

The manual covers installation of the optional handheld operator, wiring of the 4‑20 mA output, connection of external temperature sensors, and provides detailed technical data such as measurement range (0.3‑60 m), accuracy (0.1 % of span or 2 mm), power supply (100/115/200‑230 VAC, 50/60 Hz, 15 VA), and environmental ratings (‑50 °C to +150 °C, NEMA 4X). This manual is written in Chinese.
| Measurement range | 0.3‑60 m |
|---|---|
| Output signal | 4‑20 mA |
| Accuracy | 0.1 % of span or 2 mm |
| Operating temperature range | -50 °C to +150 °C |
| Weight | 27 kg |
| Enclosure rating | NEMA 4X |
The ultrasonic sensor measures from 0.3 m up to 60 m.
It uses a standard 4‑20 mA current loop output.
The device operates between –50 °C and +150 °C.
