DKX II-101 is a single-port KVM-over-IP device with high security, reliability, plug-and-play and multifunctionality, which can help IT managers use remote desktops or servers at any time to perform software installation, error correction and advanced upgrades.
The Dominion KX2-101 is a compact KVM‑over‑IP solution designed for space‑constrained environments. It supports multiple media options such as CD/DVD, USB storage, and SD cards, and offers advanced AES encryption for secure remote access. Power can be supplied via PoE or an external 6 V DC adapter, and the device includes a multi‑function serial port for additional connectivity.

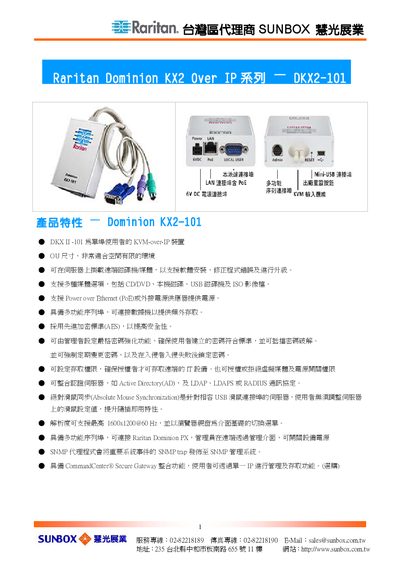

The manual details the supported interfaces (VGA, keyboard, mouse, Mini‑USB, DB9 serial, RJ45 with PoE), maximum video resolution of 1600 × 1200 @ 60 Hz, and environmental specifications. It also lists optional accessories, mounting kits, and integration options with directory services like Active Directory, LDAP, and RADIUS. This manual is written in Chinese.
| Maximum Resolution | 1600 x 1200 @ 60 Hz |
|---|---|
| Dimensions | 103 × 74 × 27 mm |
| Weight | 0.295 kg |
| Operating Temperature / Humidity | -40 °C to 0 °C, 20 %‑85 % RH |
| Keyboard Interface | Standard keyboard connector |
| Mouse Interface | Standard mouse connector |
| USB Interface | Mini‑USB (includes keyboard/mouse support) |
| Serial Interface | DB9 multi‑function serial (RS‑232, DPX) |
It supports up to 1600 × 1200 at 60 Hz.
The unit measures 103 × 74 × 27 mm and weighs about 0.295 kg.
