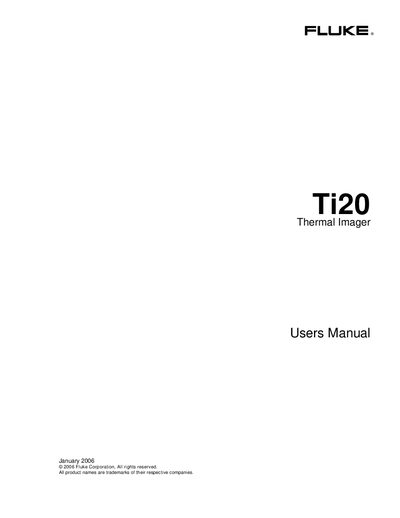

This manual introduces the Fluke Ti20 thermal imager, covering safety warnings, unpacking, basic controls, focusing, laser operation, and battery handling. It guides users through getting started, basic operation, and advanced features such as emissivity adjustment, temperature scaling, and alarm limits.
Later sections describe data management, image storage, USB transfer, and detailed specifications. Appendices include a glossary, infrared measurement basics, typical emissivity values, and a full specification table.
| NETD (Thermal Sensitivity) | 200 mK |
|---|---|
| Field of View | 20° H × 15° V (rectangular) |
| Spectral Range | 7.5 – 14 µm |
| Battery Life | Minimum 3 hours continuous use |
The battery provides a minimum of 3 hours of continuous operation.
