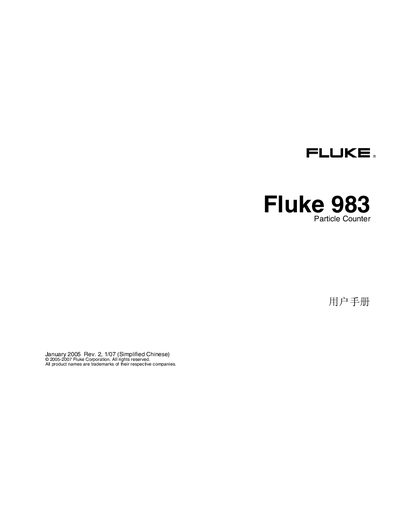

This document is the user manual for the Fluke 983 Particle Counter, providing instructions for use and warranty terms.
This manual introduces the Fluke 983 Particle Counter, outlines its application range, and presents safety guidelines for proper use. It also lists the standards and specifications the instrument complies with.
Detailed sections cover quick start procedures, hardware components such as the keyboard, backlight, base, and display, as well as configuration menus for sampling, alarms, and data export. Maintenance, part replacement, and troubleshooting information are provided to keep the device operating reliably. This manual is written in Chinese.
| Particle size channels | 0.3, 0.5, 1.0, 2.0, 5.0, 10.0 µm |
|---|---|
| Flow rate | 0.1 cfm (2.83 L/min) |
| Light source | Laser diode, waveguide type |
| Counting efficiency | 50 % @ 0.3 µm; 100 % for particles >0.45 µm |
| Data storage capacity | 5000 sample records |
| Power supply | 12 VDC, 2.5 A AC adapter; 90‑250 VAC, 50‑60 Hz |
Fluke provides a one‑year limited warranty from shipment, with a 90‑day warranty for parts, product repair, and service.
The device can store up to 5,000 sample records in its rotating cache.
It can be powered by an AC adapter (12 VDC, 2.5 A) operating from 90‑250 VAC at 50‑60 Hz, or by a rechargeable NiMH battery.
