This product is a DC brushless motor with three-phase, six-step, full-wave, coil Y-shaped winding, sintered neodymium-iron boron permanent magnet rotor and other features

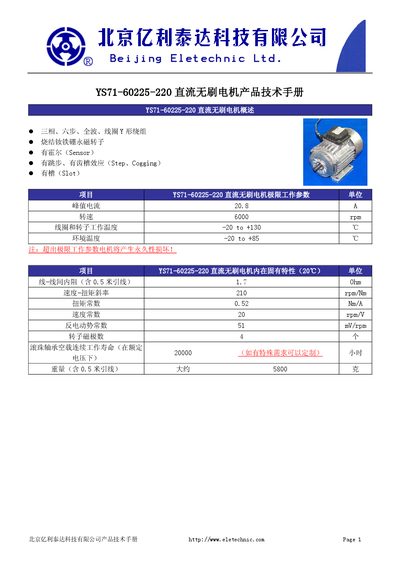

This service manual provides detailed technical information for the YS71-60225-220 brushless DC motor, including its design features, maximum working parameters, and inherent characteristics. It is intended for engineers and technicians who need to install, test, or maintain the motor.
The document includes physical dimensions, load performance curves, electrical connection diagrams, Hall sensor wiring, safety notices, and contact details for Beijing Yilitaida. All data are presented in Chinese with metric units. This manual is written in Chinese.
| Peak current | 20.8 A |
|---|---|
| Rated speed | 6000 rpm |
| Torque constant | 0.52 Nm/A |
| Speed constant | 20 rpm/V |
| Number of rotor poles | 4 |
| Rated voltage | 220 V |
| Maximum output power | 2322 W |
| Hall circuit power consumption | <30 mA |
The motor is rated for 220 V.
The maximum output power is 2322 W.
The peak current is 20.8 A.
