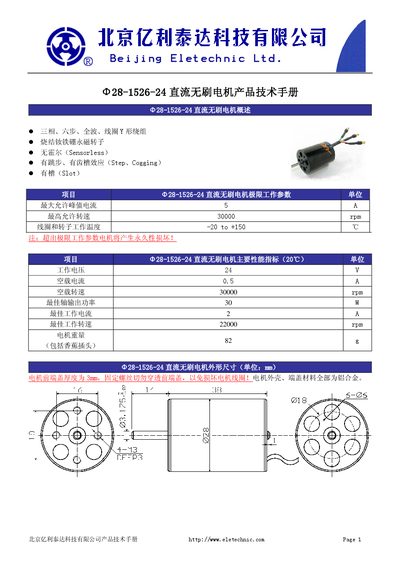

This document is the technical manual of Φ28-1526-24 DC brushless motor, which introduces the overview, limit working parameters, main performance indicators, external dimensions, electrical installation instructions, etc. of the motor.
This manual provides an overview of the 28-1526-24 DC brushless motor, including its key performance parameters such as working voltage, current limits, speed range, and optimal power output. Physical dimensions, material construction, and weight are also listed.
The document includes electrical installation instructions, wiring connections for three‑phase operation, and important safety warnings such as avoiding drilling through the front cover. Contact information for Beijing Yilitaida is provided at the end. This manual is written in Chinese.
| Working Voltage | 24 V |
|---|---|
| No‑load Current | 0.5 A |
| Maximum Peak Current | 5 A |
| Operating Temperature Range | -20 °C to +150 °C |
| Optimal Output Power | 30 W |
| Optimal Working Current | 2 A |
| Optimal Working Speed | 22000 rpm |
The motor can handle a maximum peak current of 5 A.
Do not drill or drive screws through the front cover, as this can damage the motor coils.
The motor is designed to operate at 24 V.
