FX-40 Passive infrared detector series is a high precision and reliable passive infrared detector. It adopts a patented multi-focus optical spherical lens design, which has a very high vertical sector density. Even in high temperature or small environmental temperature difference, it can guarantee the detection sensitivity in the entire detection area.

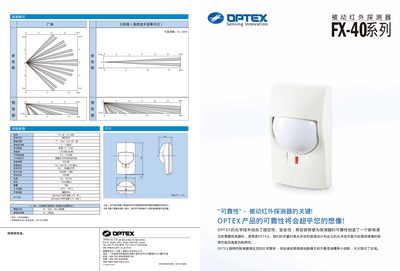

This manual describes the FX-40 optical intrusion sensor, its multi‑focus optical design, and the high‑density detection zones it provides. It includes key specifications such as detection range, power requirements, environmental limits, and LED indicator functions.
Installation guidance covers mounting options, wiring connections, and the use of the provided mounting screws. The document also explains the sensor's RFI immunity, temperature compensation features, and optional accessories for customized deployments. This manual is written in Japanese.
| Detection zones | 72 zones |
|---|---|
| Detection range | 1.5‑2.4 m |
| Detection speed | 0.3‑1.5 m/s |
| Input voltage | 9.5‑16 V DC |
| Power consumption | 17 mW (max) |
| Operating temperature | -20 °C to +50 °C |
| Maximum humidity | 95 % RH |
The sensor operates from –20 °C to +50 °C.
It requires a DC supply of 9.5 V to 16 V.
The FX-40 provides 72 detection zones.
