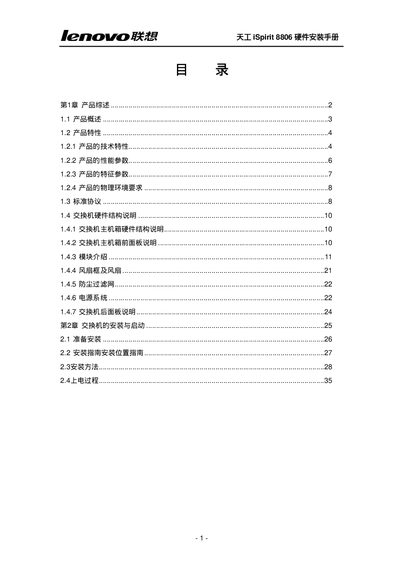

This document is the hardware installation manual for the TianGong iSpirit 8806. It describes the overview, features, standard protocols, and hardware structure of the product.
This manual introduces the Lenovo iSpirit 8806 modular 10/40/100 GbE core router switch, covering its hardware architecture, key features such as a >384 Gbps backplane, >192 Gbps switching capacity, up to 84 100 GbE ports, and advanced routing, security, and QoS capabilities. It also lists physical dimensions, power requirements, and supported protocols.
The guide details the installation process, including preparation, mounting, connecting the control port, power‑on sequence, Bootrom options, and management interfaces (CLI, Telnet, SNMP). It provides wiring diagrams, boot configuration steps, and troubleshooting notes for a successful deployment. This manual is written in Chinese.
| Backplane bandwidth | >384 Gbps |
|---|---|
| Switching capacity | >192 Gbps |
| Power supply configuration | 1+1 redundant, up to 3 units |
| 10 GbE (万兆) ports | 8 |
| 100 GbE (干兆) ports | 84 |
| VLAN capacity | 4 K |
| MAC address table size | 64 K entries |
| Power consumption | 350 W |
The iSpirit 8806 provides eight 10 GbE (万兆) ports.
The switch’s backplane bandwidth exceeds 384 Gbps.
It supports a 1+1 redundant power‑supply configuration and can accommodate up to three power units.
The device can be managed via CLI, Telnet, and SNMP.
