This data sheet provides technical specifications for AC DC power supplies, including input voltage, input frequency, input current, input power factor, input protection, output voltage, output voltage adjustment, initial set accuracy, minimum load, start-up delay, start-up rise time, hold-up time, drift, line regulation, load regulation, transient response, ripple and noise, and overvoltage protection.

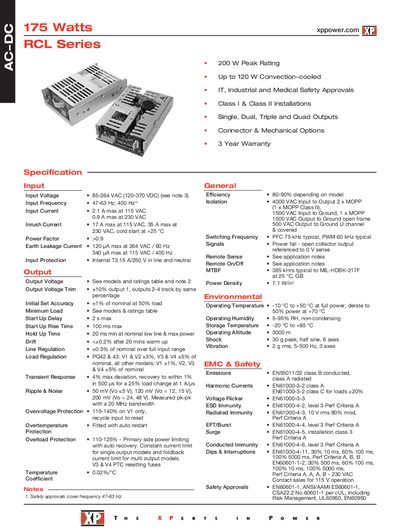

The XP Power RCL175 series provides 175 W AC‑DC conversion with a wide input voltage range and multiple output configurations. The manual lists electrical specifications, safety approvals, environmental limits, and mechanical dimensions for single, dual, triple and quad output models.
Detailed sections describe connector pin‑outs, optional accessories (U‑channel, fan cover, remote enable), and installation guidelines. Mechanical drawings give mounting hole locations, dimensions and weight for each chassis option.
| Input Voltage | 85‑264 VAC (120‑370 VDC) |
|---|---|
| Input Frequency | 47‑63 Hz; 400 Hz |
| Input Current (115 VAC) | 2.1 A max |
| Input Current (230 VAC) | 0.9 A max |
| Efficiency | 80‑90 % (depending on model) |
| Isolation | 4000 VAC Input to Output (2 × MOPP) |
| Operating Temperature | -10 °C to +50 °C (full power) |
| Weight (open frame) | 1.10 lb (600 g) approx. |
| MTBF | ≈ 385 khrs typical |
The RCL175 series accepts 85‑264 VAC (120‑370 VDC).
Efficiency ranges from about 80 % to 90 % depending on the model.
It meets EN60601‑1, ANSI/AAMI ES60601‑1, CSA22.2 No.60601‑1, UL60950 and EN60950 approvals.
The unit operates from –10 °C to +50 °C at full power and can be derated to 50 % power up to +70 °C.
