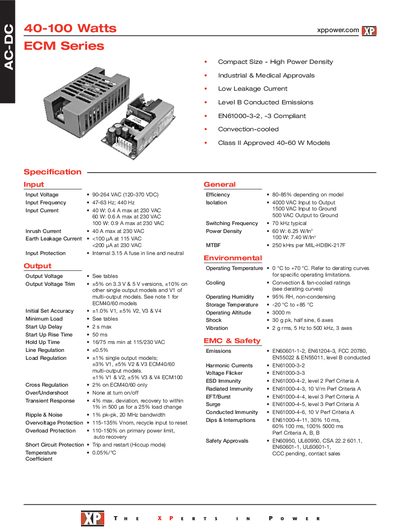

This document is the data sheet of ECM series AC-DC power supply, which mainly introduces the characteristics of this series of products, including input voltage, frequency, current, output voltage, accuracy, minimum load, start-up delay, start-up rise time, hold-up time, line voltage regulation, load voltage regulation, cross regulation, over/under voltage protection, overload protection, short circuit protection, etc.
The ECM series from XP Power offers compact, high‑power‑density AC‑DC converters ranging from 40 W to 100 W. They support a wide input voltage range (90‑264 VAC, 120‑370 VDC) and meet industrial and medical approvals, including EN‑61000 emissions and UL safety standards.
Mechanical details include Molex J1 input and J2 output connectors, optional cover kits, and dimensions provided in inches. Environmental ratings cover operation from 0 °C to +70 °C, 95 % non‑condensing humidity, and shock/vibration limits suitable for industrial use.
| Input Voltage | 90‑264 VAC (120‑370 VDC) |
|---|---|
| Input Frequency | 47‑63 Hz; 440 Hz |
| Efficiency | 80‑85 % (model dependent) |
| Isolation | 4000 VAC Input to Output |
| Operating Temperature | 0 °C to +70 °C |
| Weight (ECM40/60) | 0.33 lb (150 g) |
The ECM series accepts 90‑264 VAC (120‑370 VDC) input voltage.
The converters have 4000 VAC isolation between input and output.
The units operate from 0 °C up to +70 °C.
Typical efficiency ranges from 80 % to 85 % depending on the model.
