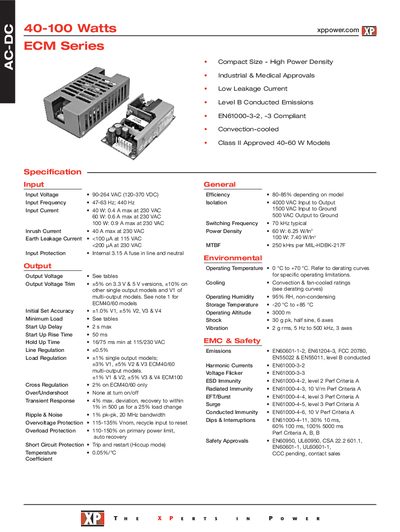

This is a specification sheet for the ECM series 40-100 watt ac-dc converters, including input voltage, input frequency, input current, input protection, output voltage, output voltage trim, initial set accuracy, minimum load, start-up delay, start-up rise time, hold-up time, line regulation, load regulation, cross regulation, overvoltage protection, overload protection, short circuit protection, etc.
The ECM Series from XP Power offers compact, high‑density AC‑DC power supplies ranging from 40 W to 100 W. Designed for industrial and medical applications, the units support a wide input voltage range and provide regulated output voltages from 3.3 V up to 48 V.
Key features include efficiencies of 80‑85 %, 4000 VAC isolation, extensive environmental and EMC compliance, and detailed mechanical dimensions for easy integration. Safety approvals such as EN60950, UL60950, and CSA 22.2 are listed, along with derating curves for convection‑cooled operation.
| Input Voltage Range | 90‑264 VAC (120‑370 VDC) |
|---|---|
| Efficiency | 80‑85 % (depending on model) |
| Isolation | 4000 VAC Input to Output |
| Operating Temperature | 0 °C to +70 °C |
| Weight (single output model) | ≈0.33 lb (150 g) |
The ECM series accepts an input voltage of 90‑264 VAC (120‑370 VDC).
Efficiency ranges from 80 % to 85 % depending on the model.
The units operate from 0 °C up to +70 °C.
The series complies with EN60950, UL60950, and CSA 22.2 safety standards.
