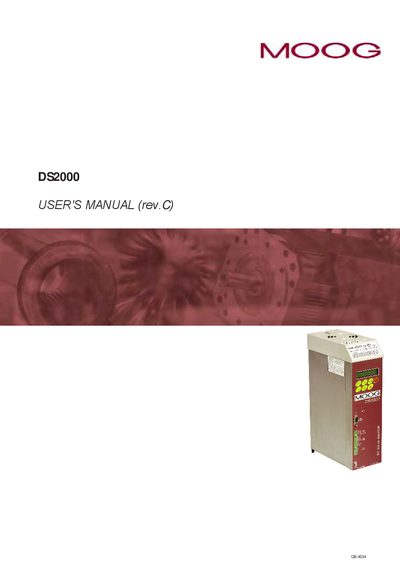

DS2000 USER'S MANUAL (rev.C) is a user manual for the DS2000 product, which describes its features and technical data.
This manual describes the DS2000 "The Motion Solution" servodrive, covering installation, wiring, safety requirements, and functional configuration. It is intended for installers and users with basic knowledge of electronics and servodrives.
The document includes sections on wiring and grounding, start‑up procedures, command menus, troubleshooting, and an optional restart‑interlock circuit, plus appendices with motor data, FC series data, and software release notes.
| BUS BAR voltage | 2810 V |
|---|---|
| IGBT protection | Available (12T IGBT Protection) |
The BUS BAR can have a voltage of up to 2810 V, even after the drive is switched off.
The DS2000 provides a 12T IGBT Protection feature that can be enabled in the menu to limit current and prevent overheating of the IGBT modules.
