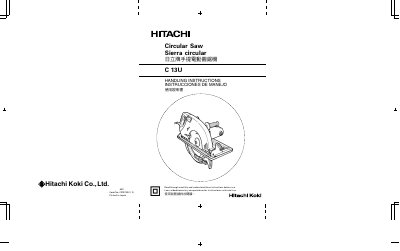

This manual covers handling instructions, general safety rules, and specific precautions for using the Hitachi C13U circular saw. It explains how to prepare the work area, connect power safely, and protect yourself while operating the tool.
Detailed sections describe adjusting the cutting depth and angle, mounting and dismounting the saw blade, and performing regular maintenance such as inspecting carbon brushes and the motor. Optional accessories like a dust‑collection adapter are also listed.
| Voltage (by areas) | 110V, 220V, 230V, 240V |
|---|---|
| Cutting Depth | 90 mm – 128 mm |
| Power Input | 1560 W |
| No‑Load Speed | 3400 rpm |
| Weight (without cord) | 13 kg |
| Saw Blade Diameter | 305 mm – 335 mm |
It can be used with 110 V, 220 V, 230 V, or 240 V power supplies, depending on the region.
Replace the carbon brushes when they are worn to the wear limit shown in the manual, using brushes with the same part number.
The saw blade can be up to 335 mm in external diameter (range 305 mm – 335 mm).
