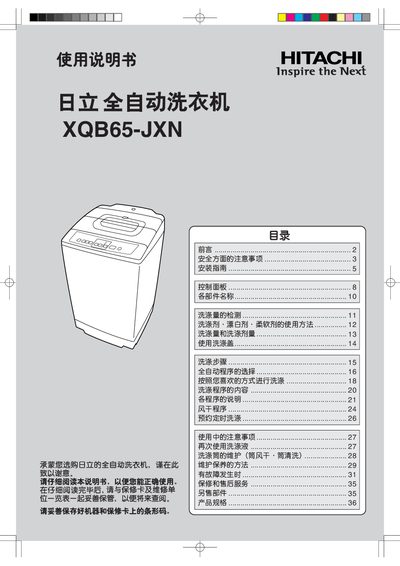

This document describes the installation, usage, and precautions of the XQB65-JXN washing machine, as well as its washing, drying functions and maintenance methods.
This manual covers all aspects of the Hitachi XQB65-JXN fully automatic washing machine, including safety precautions, installation steps, component identification, program selection, and routine maintenance. It also lists the warranty and service information for owners.
Key sections guide users through proper placement on a level floor, connection of water inlet and drain hoses, operation of the various wash and drying programs, and safe handling of the power cord and other components. This manual is written in Chinese.
| Product type | Fully automatic washing machine |
|---|---|
| Standard wash capacity | 6.5 kg |
| Power supply | 220 V ~ 50 Hz |
| Water pressure range | 0.03 MPa ~ 0.8 MPa |
| Dimensions (W×D×H) | 577 mm × 585 mm × 985 mm |
| Noise (wash) | 59 dB(A) |
| Noise (spin) | 69 dB(A) |
| Rated power (wash) | 440 W |
| Rated power (spin) | 400 W |
| Energy efficiency class | 2 |
| Energy consumption per cycle | 0.110 kWh |
| Water consumption per cycle | 155 L |
Place the machine on a hard, flat surface, keep it away from walls, and adjust the leveling feet until the unit is level within 3 mm.
Do not damage the power cord, use a grounded plug, and avoid exposing the cord to water or moisture.
Use the supplied hoses, tighten the connection nuts securely, do not exceed a drain‑pipe length of 5 m, and use only approved extension hoses if needed.
Press the program button; the corresponding indicator light will illuminate to show the selected program.
