Safety Instructions
The VK-C516 series is a surveillance‑grade color video camera designed for indoor and outdoor monitoring. It uses a 1/4‑type CCD sensor and outputs standard CVBS video signals.

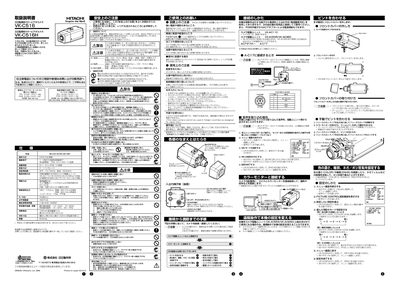

This manual covers safety precautions, proper installation of the camera and its drive unit, connection of power and video cables, operation of shutter speed and white‑balance settings, routine maintenance, troubleshooting, and warranty information. This manual is written in Japanese.
| Signal method | NTSC (NTSO方式準拠) |
|---|---|
| Image sensor | 1/4 type CCD |
| Effective pixels | 768 (H) x 494 (V) |
| Video output | CVBS 1 Vp‑p, sync 1.3 Vp‑p |
| Impedance | 75 Ω unbalanced |
| Horizontal resolution | 480 TV lines |
| Minimum illumination | 1.3 lx (AGC: NOHM) |
| Operating temperature | -10 °C to +50 °C |
| Power consumption | 185 mA (normal), max 1.0 A (DC 12 V input) |
The warranty lasts for one year from the date of purchase.
