AC servo motor safety precautions, including pre-use precautions and safety use regulations

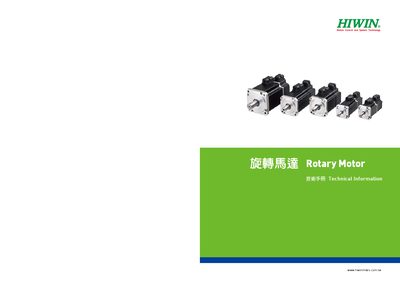

The manual covers all aspects needed to safely install, operate, and service the HIWIN rotary motor. It begins with safety precautions, then details installation steps, wiring diagrams, and motor characteristics for various power‑rating series.
Key sections include motor specifications, recommended operating environment, maintenance procedures, and troubleshooting tips. The document also provides tables of rated power, voltage, current, and performance curves for the 50 W, 100 W, 200 W, 400 W, and 750 W series. This manual is written in Japanese.
