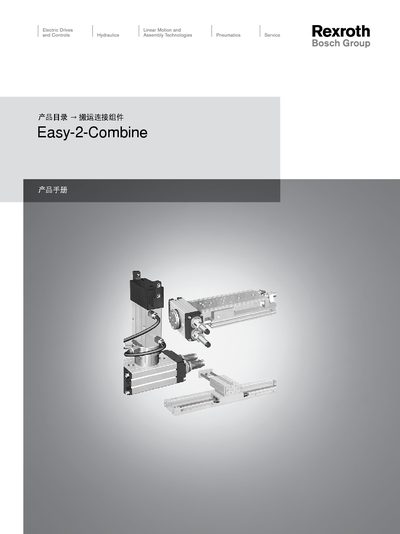

This manual provides detailed information on the components and assembly instructions of the Easy-2-Combine product range.
The Easy-2-Combine transport connection module is a pneumatic component used to connect and transport modules in automation systems. The manual lists the various sub‑assemblies, part numbers and compatible series such as RTC‑HD, RTC‑CG, GPC‑E, and others.
Technical specifications, maximum stroke, speed, and load limits are given, followed by contact details for Bosch Rexroth offices worldwide. The document also contains safety notes and a disclaimer about product wear and aging.
| Maximum stroke (RTC‑HD) | 4300 mm |
|---|---|
| Maximum speed (RTC‑HD) | 0.7 m/s |
| Maximum weight | 2 kg |
| Maximum stroke (RTC‑CG) | 500 mm |
| Maximum speed (RTC‑CG) | 1.2 m/s |
The RTC‑HD version can travel up to 4300 mm.
The RTC‑CG version can move at a maximum speed of 1.2 m/s.
The module is rated for a maximum load of 2 kg.
