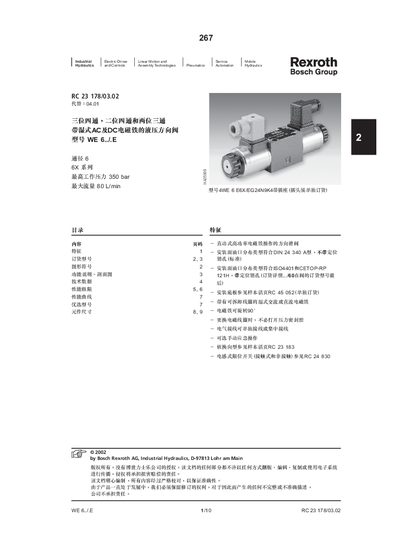

This document introduces the industrial hydraulic products of Bosch Rexroth AG, including industrial hydraulics, electric drives and controls, linear motion and assembly technologies, pneumatics, service automation, and mobile hydraulics. It specifically describes the features and characteristics of the hydraulic directional valve with model 4WE 6 E6X/EG24N9K4.
The 4WE 6 E6X/EG24N9K4 is a hydraulic directional valve with optional socket, designed for high‑pressure fluid control in industrial applications. It offers both AC and DC solenoid options and can be configured with manual emergency operation.
The manual includes product features, functional description, technical specifications, component dimensions, installation guidelines, ordering codes, and characteristic curves. Safety notes and wiring instructions are also provided to ensure correct integration and operation. This manual is written in Chinese.
| Maximum working pressure | 350 bar |
|---|---|
| Maximum flow rate | 80 L/min |
| Operating temperature (environment) | -30 to +50 °C |
| Weight (single solenoid) | 1.45 kg |
The valve is rated for a maximum working pressure of 350 bar.
