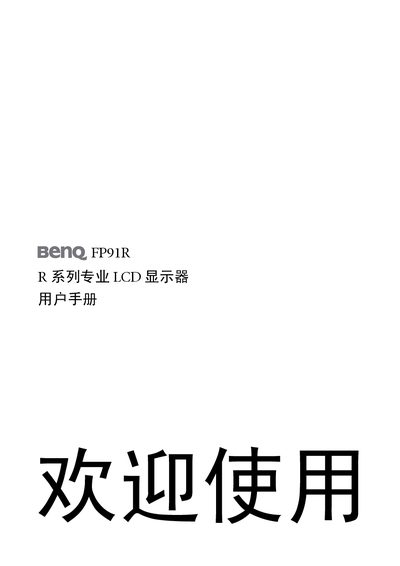

This is the user manual for BenQ FP91R monitor. It introduces the functions and features of the monitor and how to use it.
This manual introduces the FP91R R Series professional LCD display, covering safety guidelines, power specifications and basic operation. It explains the power safety features, the i‑key automatic adjustment, and the functions of the controller and OSD menus.
The guide walks you through unpacking, hardware assembly, cable connections, installing drivers and software, adjusting screen angle, calibrating brightness and color, and performing routine maintenance and fault diagnosis. Detailed sections cover vertical display rotation, pivot software installation, and FAQ troubleshooting. This manual is written in Chinese.
| Resolution | 1280 x 1024 |
|---|---|
| Color contrast (typical) | 600:1 |
| Brightness (typical) | 250 cd/m² |
| Response time (typical) | 18 ms |
| Maximum power consumption | 70 W |
| Input signals | DVI‑D, DVI‑I, D‑Sub |
| Power voltage | 100‑260 V, 50‑60 Hz |
| Dimensions (H×W×D) | 415.8 x 482.56 x 276.6 mm |
Pressing the i‑key automatically adjusts vertical position, phase, horizontal position and pixel frequency.
Press the Input button to toggle between DVI‑1, DVI‑2, D‑Sub 1 and D‑Sub 2 connections.
The AC plug is insulated from the AC source, and the power cord acts as a disconnect device; install the socket near the unit for easy plugging.
