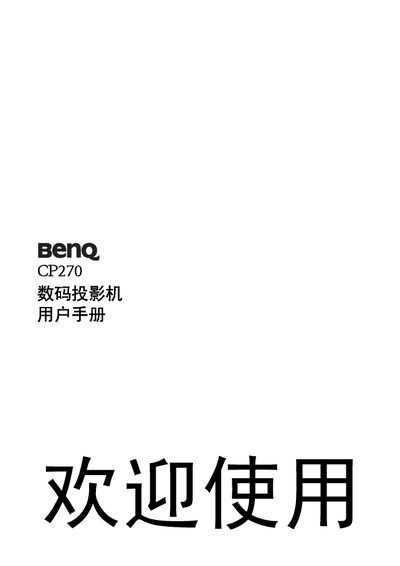

Welcome to the CP270 digital projector user manual, this manual introduces the projector's features, installation, connection, operation, maintenance and other content, please read carefully and keep it properly
This manual provides safety guidelines, a list of supplied items, and a detailed description of the CP270 projector’s front panel, controls and functions. It walks users through installation, positioning, image size selection, connections to computers and video sources, and everyday operation such as powering on, menu navigation, password protection and image adjustments.
Later sections cover maintenance tasks, lamp information, troubleshooting steps and full technical specifications. The document also includes regulatory information and warranty details for the CP270 digital projector. This manual is written in Chinese.
| Optical resolution | 1024 x 768 (XGA) |
|---|---|
| Display system | 1‑CHIP DMD |
| Lens focal length | F = 2.56 – 2.67, f = 21.36 – 23.45 mm |
| Lamp power | 200 W |
| Maximum power consumption | 285 W |
| Dimensions (W × H × D) | 190 mm × 77.5 mm × 205 mm |
| Weight | < 3.3 lb (< 1.5 kg) |
| Control interface | RS‑232 8‑pin serial port |
| Operating voltage | 100‑240 V AC, 3 A, 50/60 Hz |
| Operating temperature | 0 °C – 40 °C (sea level) |
| Relative humidity | 10 % – 90 % (no condensation) |
Wait about 45 minutes after the lamp is turned off to allow the projector to cool before replacing it.
The projector operates on an AC voltage range of 100 V to 240 V.
Yes, it includes an RS‑232 8‑pin serial control port.
