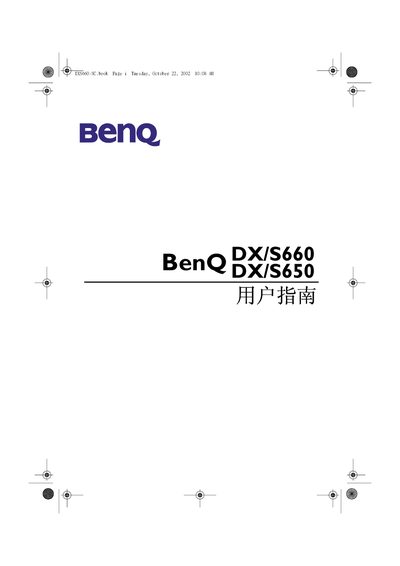

This manual explains how to safely install, operate, and maintain the BenQ DX/S660 and DX/S650 personal projectors. It includes safety warnings, warranty information, a list of shipped items, optional accessories, and detailed instructions for using the remote control and external panel.
The guide also covers projector functions such as auto‑adjust, digital trapezoidal correction, source selection, and menu navigation. Technical specifications—including resolution, lamp power, dimensions, weight, and input connectors—are listed for quick reference, and a troubleshooting section helps resolve common issues. This manual is written in Chinese.
| Model | DX660/650 |
|---|---|
| Resolution | 1024×768 (XGA) |
| Lamp Power | 210 W NSH |
| Power Supply | AC 100‑240 V, 3.5 A, 50/60 Hz |
| Maximum Power Consumption | 330 W |
| Dimensions (W×H×D) | 308 mm × 95 mm × 238 mm |
| Weight | 6.8 lb (3.1 kg) |
| Input Connectors | RGB D‑sub 15‑pin, S‑Video Mini‑DIN 4‑pin, VIDEO RCA, HDTV YPBPR (x3) |
| Audio Connectors | 1 M mini‑jack, RCA L/R (x2) |
| Control Interface | RS‑232C 9‑pin |
Allow the projector to cool for about 45 minutes before removing the lamp.
The lamp is covered for 90 days or 500 hours of use, whichever occurs first.
You can select signals from PC, Video, S‑Video, or YPBPR sources.
