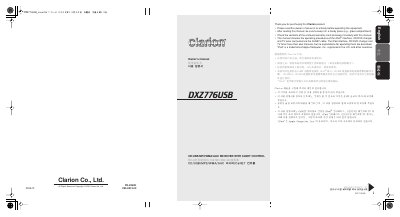

This manual provides operating instructions for the Clarion DXZ776USB receiver, covering basic controls, CD/USB playback, iPod interface, and CeNET‑linked auxiliary devices. It includes safety precautions, button functions, display information, and guidance for using the detachable control panel (DCP).
The document also contains technical specifications, power requirements, and dimensions, as well as warnings about condensation, vibration, and proper handling of discs. Users are advised to read the entire manual before installation and to keep it accessible in the vehicle.
| FM frequency range | 87.0 MHz to 108.0 MHz |
|---|---|
| FM sensitivity | 9 dBµV |
| 50 dB S/N sensitivity | 15 dBµV |
| Adjacent channel selectivity | 70 dB |
| Stereo separation (1 kHz) | 35 dB |
| Frequency response (+3 dB) | 30 Hz to 15 kHz |
| AM frequency range | 531 kHz to 1629 kHz |
| Maximum power output | 212 W (4 ch) |
| Power supply voltage | 14.4 V DC (10.8‑15.6 V) |
| Current consumption | < 15 A |
| Speaker impedance | 4 Ω (4‑8 Ω) |
| Weight (main unit) | 1.6 kg |
| Dimensions (main unit) | 178 mm W × 50 mm H × 158 mm D |
Press the center of the CD case, hold the edge of the disc, and gently pull it out.
Press and hold the RELEASE key to unlock the CCP; pressing it again locks the panel.
