The USB 2.0 4-Port Hub TS0MHUB4 is a 4-port hub that complies with USB 2.0 specifications and is backward compatible with USB 1.1 standard. It features high transfer rates, ease of use, and portability, making it suitable for connecting devices that require large data transfers.
The TS0MHUB4 is a USB 2.0 4‑Port hub that complies with the USB 2.0 specification and is backward compatible with USB 1.1. It offers up to 480 Mbps high‑speed data transfer and can power multiple devices such as digital cameras, scanners, printers, and DVD burners.

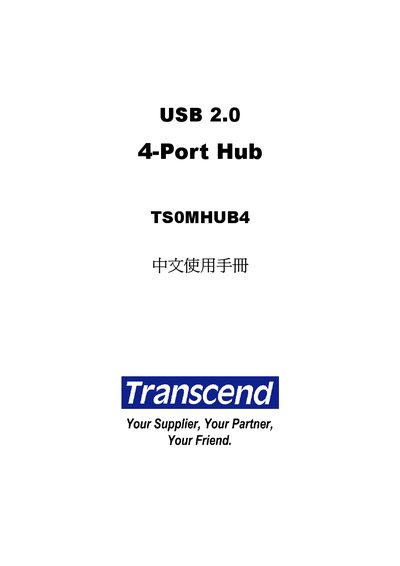

The manual covers product features, packaging contents, installation steps, connection diagrams, technical specifications, and warranty terms. It also explains how to safely remove the hub and provides troubleshooting tips. This manual is written in Chinese.
| Dimensions | 85 mm × 49 mm × 15 mm (L × W × H) |
|---|---|
| Upstream Port | 1 × mini‑B (Series‑mini‑B) |
| Downstream Ports | 4 × Series‑A |
| Power Supply | DC 5 V 2.3 A |
| Typical Power Consumption | 300 mA |
| Over‑current Protection | 1250 mA |
| Maximum Output Current | 500 mA |
| Operating Temperature | 0 °C – 80 °C |
| Operating Humidity | 0 % – 40 % RH |
| Certifications | FCC, CE, UL, TUV, TSE |
Connect the supplied power adapter to the hub’s power socket, plug the power adapter into an outlet, then connect the hub’s mini‑B upstream port to the computer and attach devices to the four downstream ports.
It uses a DC 5 V, 2.3 A power supply, draws about 300 mA in normal operation, and includes over‑current protection up to 1250 mA.
Before removing, ensure no USB devices are still connected to the hub; then unplug the USB cable and power adapter.
