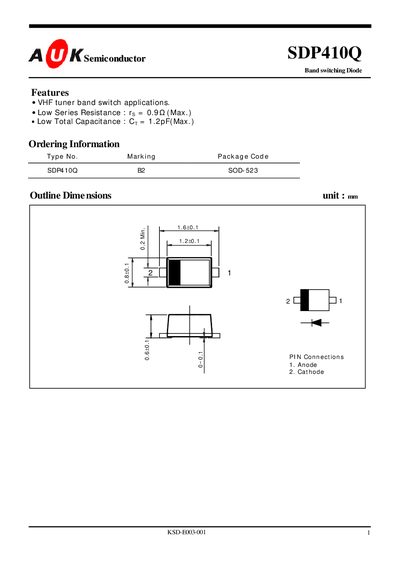

The datasheet provides detailed information on the SDP410Q diode product, including physical dimensions, pin definitions, absolute maximum ratings, and electrical characteristics.
The SDP410Q is a band‑switching diode intended for VHF tuner applications. It features low series resistance and low total capacitance, making it suitable for high‑frequency switching.
The document lists the diode's absolute maximum ratings, electrical characteristics, and characteristic curves, including forward voltage, reverse current, capacitance, and series resistance across various test conditions.
| Continuous reverse voltage | 30 V |
|---|---|
| Forward current | 100 mA |
| Junction temperature | 150 °C |
| Storage temperature range | -55 °C to 150 °C |
| Forward voltage (I_F = 2 mA) | 0.85 V |
| Reverse current (V_R = 15 V) | 0.1 µA |
| Total capacitance (V_R = 6 V, f = 1 MHz) | 0.7 pF to 1.2 pF |
| Series resistance (I_F = 2 mA, f = 100 MHz) | 0.5 Ω to 0.9 Ω |
The diode can withstand a continuous reverse voltage of up to 30 V.
The maximum forward current is specified as 100 mA.
At a test current of 2 mA, the forward voltage is typically 0.85 V.
Pin 1 is the anode and Pin 2 is the cathode.
