This product is a 2-input CMOS NOR gate with high speed, low power consumption and ultra small package.

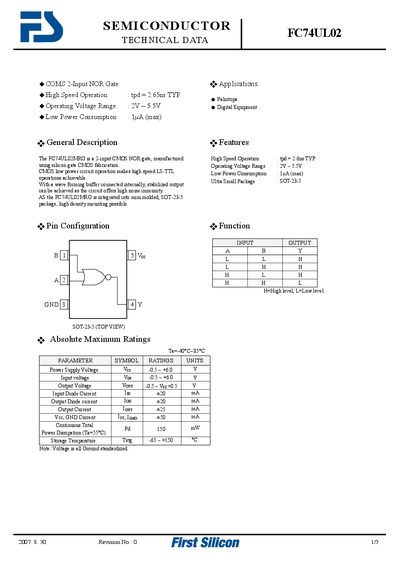

The FC74UL02 is a 2‑input CMOS NOR gate offered by First Silicon. It features a wave‑forming buffer for stable output, high noise immunity, and can be mounted in a mini‑molded SOT‑23‑5 package for high‑density applications such as palmtops and digital equipment.
Key electrical characteristics include a typical propagation delay of 2.6 ns, operating voltage range of 2 V to 5.5 V, low power consumption of 1 µA (max), continuous power dissipation of 150 mW, and a storage temperature range of –65 °C to +150 °C.
| Propagation Delay (tpd, typical) | 2.6 ns |
|---|---|
| Operating Voltage Range | 2 V ~ 5.5 V |
| Low Power Consumption (max) | 1 µA |
| Package | SOT‑23‑5 |
| Continuous Power Dissipation | 150 mW |
| Storage Temperature Range | -65 °C ~ +150 °C |
| Supply Voltage (recommended) | 2 V ~ 5.5 V |
| Input Rise/Fall Time | 33 ns ~ 100 ns |
| Output Current (max) | 25 mA |
The device operates from 2 V to 5.5 V.
It is supplied in an ultra‑small SOT‑23‑5 package.
Typical propagation delay is 2.6 ns.
The device is rated for –40 °C to +85 °C.
