The DS1026-04 series is a single‑row bottom‑entry socket connector with a thermoplastic housing. It is offered in a black housing with full gold‑flash contact plating and a variety of contact configurations.

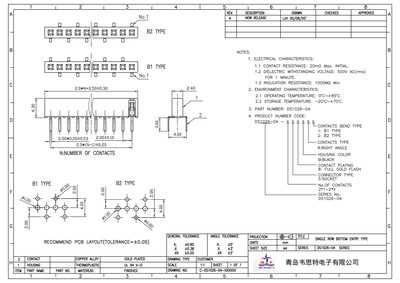

Key specifications include a contact resistance of 20 mΩ max, dielectric withstanding voltage of 500 V AC (rms), insulation resistance of 1 GΩ min, operating temperature range of 0 °C to +85 °C, and storage temperature range of –20 °C to +70 °C. Recommended PCB layout tolerances and mechanical dimensions are also provided. This manual is written in Chinese.
| Contact resistance | 20 mΩ max (initial) |
|---|---|
| Dielectric withstanding voltage | 500 V AC (rms) |
| Insulation resistance | 1 GΩ min |
| Operating temperature | 0 °C to +85 °C |
| Storage temperature | –20 °C to +70 °C |
| Number of contacts | 2*1–2*X |
| Housing color | Black |
| Connector type | Socket |
| Series | DS1026-04 |
The contact resistance is specified as 20 mΩ maximum initially.
It can withstand 500 V AC (rms).
The connector operates from 0 °C up to +85 °C.
The insulation resistance is at least 1 GΩ.
