The DS1029-07 series is a single‑row right‑angle connector with a PBT UL‑94V‑0 insulator and copper‑alloy contacts that are gold‑plated. The housing is black thermoplastic and the connector uses a 2.54 mm pitch pin header.

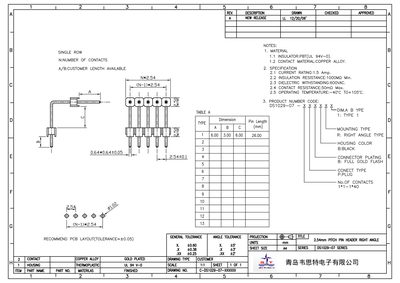

Key specifications include a 1.5 A current rating, 1000 MΩ minimum insulation resistance, 60 V AC dielectric withstanding, 50 mΩ maximum contact resistance, and an operating temperature range of –40 °C to +105 °C. Mechanical dimensions are listed for the right‑angle mounting type.
| Current Rating | 1.5 A |
|---|---|
| Insulation Resistance | 1000 MΩ Min |
| Dielectric Withstanding Voltage | 60 V AC |
| Contact Resistance | 50 mΩ Max |
| Operating Temperature | -40 °C to +105 °C |
The connector is rated for a maximum current of 1.5 A.
It can withstand up to 60 V AC.
The insulation resistance is specified as at least 1000 MΩ.
It operates from –40 °C up to +105 °C.
