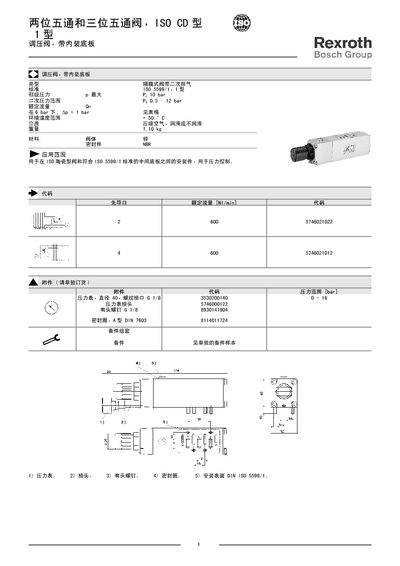

Regulator valve with integral baseplate, with secondary exhaust
The 1S0 CD valve is a diaphragm‑type pressure regulator with an internal mounting plate, designed for use with compressed air, either lubricated or non‑lubricated. It is intended for installation between a ceramic‑type inlet and a standard intermediate plate meeting the 1S0 559971 standard.
The document lists key specifications such as a maximum primary pressure of 10 bar, a secondary pressure range of 0.5–12 bar, a rated flow at 6 bar with Ap = 1 bar, operating temperature up to +50 °C, weight of 1.10 kg, NBR seals, and accessories including pressure gauges, fittings, and spare parts. This manual is written in Chinese.
| Maximum primary pressure | 10 bar |
|---|---|
| Secondary pressure range | 0.5 – 12 bar |
| Rated flow (Gn) at 6 bar | Ap = 1 bar |
| Operating temperature range | +50 °C |
| Medium | Compressed air, lubricated or non‑lubricated |
| Weight | 1.10 kg |
| Seal material | NBR |
| Pressure gauge diameter | 40 mm |
The maximum primary pressure is 10 bar.
The secondary pressure range is 0.5 to 12 bar.
The valve uses NBR seals.
