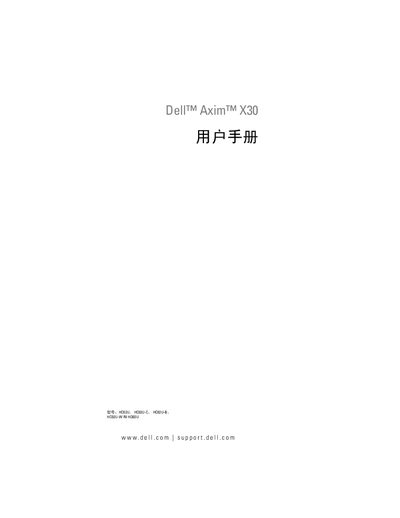

This document is the user manual for Dell Axim X30, which describes the features and characteristics of models such as HC02U, HC02U-C, HC02U-B, HC02U-W, and HD03U.
This Dell Axim X30 manual provides detailed safety guidelines, hardware specifications, and step‑by‑step instructions for using the handheld PC. It includes sections on battery handling, power adapters, and environmental precautions to ensure safe operation.
The guide also explains how to connect the device to a computer, use Windows Mobile 2003 Second Edition, and operate input methods such as the stylus, soft keyboard, and handwriting recognition. Wireless features like infrared, Bluetooth, and Wi‑Fi are described, followed by a full specification table and appendices. This manual is written in Chinese.
| Processor | Intel® XScale™ PXA270 |
|---|---|
| CPU Speed | up to 624 MHz |
| RAM | 64 MB or 32 MB SDRAM |
| ROM | 64 MB or 32 MB Intel® StrataFlash™ ROM |
| Operating System | Microsoft® Windows Mobile™ 2003 Second Edition |
| Display Type | QVGA TFT 16‑bit color reflective touchscreen |
| Screen Size | 3.5 inches |
| Brightness | 100 nits |
| Physical Dimensions | 117.0 mm × 77.2 mm × 14.9 mm (without antenna) |
| Weight | 136.5 g (with standard battery) |
| Battery | Dell™ battery module (only approved type) |
No. Only the Dell‑approved battery module should be used; other batteries may cause fire or explosion.
Only the Dell‑provided licensed AC adapter may be used; other adapters can cause fire or explosion.
