MOLD 5 M1 is a high-performance spindle with a maximum power of 9.0 kW, a continuous power of 5.0 kW, a speed of 3,000-40,000 rpm and a spindle diameter of 105 mm. The tool clamping system uses a clamping tool ER20.

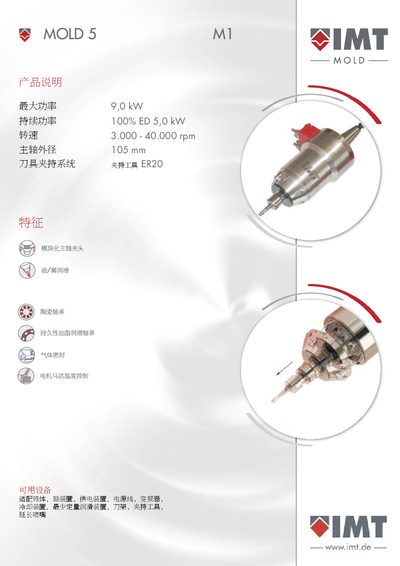

The IMT MOLD5 M1 selection guide presents key technical data for the tool, including power ratings, speed range, and tool holder type. It also details the physical dimensions and mounting requirements.
Additional sections describe the spindle, coolant, and air‑purge connections, giving part numbers and pin assignments to aid integration into machining systems. This manual is written in Chinese.
| Speed range | 3.000 - 40.000 rpm |
|---|---|
| Tool holder type | ER20 |
| Spindle power connection | Spindlecode + 24V |
| Coolant mist system connection | Present |
| Coolant forward flow connection | Present |
| Coolant return flow connection | Present |
| Air purge connection | Present |
It uses an ER20 tool holder.
