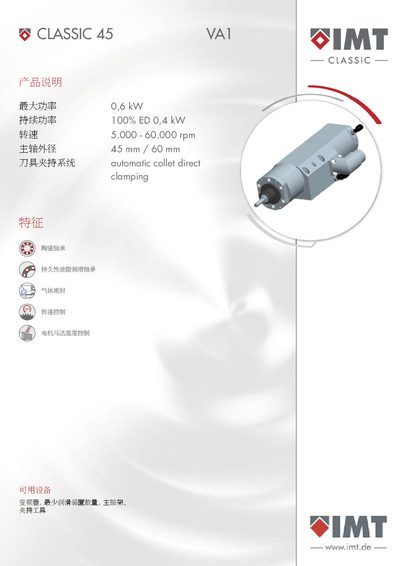

This document describes the features and characteristics of a product, including speed, spindle outer diameter, tool holding system, and other technical parameters.
This manual describes the technical data of the IMT CLASSIC 45 spindle, including its maximum power, speed range, outer diameter, and maximum tool size. It also covers the cooling system, air‑purge pressure, and electrical connections required for operation.
The document contains dimensional drawings, wiring diagrams, and instructions for tool change, spindle mounting, and coolant handling, helping users install, operate, and maintain the spindle safely and efficiently. This manual is written in Japanese.
| Maximum Power | 0.6 kW |
|---|---|
| Rated Power | 0.4 kW |
| Spindle Speed | 5,000 – 60,000 rpm |
| Spindle Outer Diameter | 45 mm / 60 mm |
| Maximum Tool Diameter | 6.8 mm |
| Maximum Coolant Pressure | 0.2 – 0.3 bar |
The spindle can run from 5,000 to 60,000 rpm.
The maximum tool diameter is 6.8 mm.
The rated power is 0.4 kW, with a maximum power of 0.6 kW.
The coolant pressure may not exceed 0.2 to 0.3 bar.
