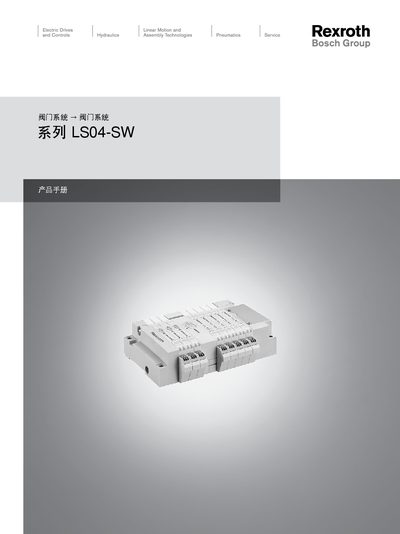

This document is the manual of LS04-SW series of pneumatic valve system, which mainly introduces the features and characteristics of this series of products, including working pressure range, environmental temperature range, medium temperature range, particle size, compressed air oil content, protection class, number of solenoids, working voltage, DC voltage tolerance, etc.
This guide covers the installation, setup, and operation of the LS04‑SW pneumatic valve system. It includes safety warnings, connection diagrams, and step‑by‑step procedures to ensure correct use.
Technical specifications such as pressure, temperature, flow limits, and electrical requirements are listed, along with compliance references and contact information for Bosch Rexroth support.
| Operating pressure range | -0.9 bar to 8 bar |
|---|---|
| Operating temperature range | -10 °C to 450 °C |
| Flow limit | 0 mg/m³ to 5 mg/m³ |
| Supply voltage | 24 V ±10 % / +40 % |
| EMC compliance | EN 61000‑6‑4:2002, IEC 61000‑6‑2:2005 |
The valve can operate from -0.9 bar up to 8 bar.
The allowed temperature range is -10 °C to 450 °C.
It requires a 24 V supply with a tolerance of ±10 % to +40 %.
