SWAN 1000 is a new generation of passive infrared and microwave dual-detection detector that adopts professional moving image spectrum analysis technology and has pet protection function. The detector can be wall-mounted or corner-mounted. If you need to install it on the ceiling or some special walls, it is recommended to use the dedicated bracket in the optional accessories.
The SWAN 1000 is a passive infrared and microwave dual‑technology detector that combines four‑element IR sensors and a Doppler‑based microwave unit to provide reliable intrusion detection while offering a pet‑immunity function. It includes adjustable sensitivity for both IR and microwave channels, temperature compensation, and a tamper‑switch.

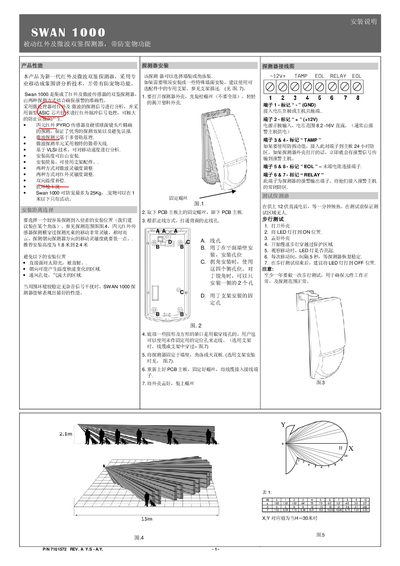

The manual explains how to mount the detector on walls, corners or ceilings, connect the power and alarm wiring, configure the LED indicators, sensitivity switches, pet‑immunity setting, and alarm mode (AND/OR). It also describes the walk‑test procedure to verify proper operation after installation. This manual is written in Chinese.
| Detection method | 四元红外 and 微波 |
|---|---|
| Operating voltage | 8.2 – 16 V DC |
| Trigger current consumption | 25.5 mA |
| Standby current consumption | 16.5 mA |
| Alarm output | NC 28 VDC 0.1 A with 10 Ω resistor |
| Dimensions | 123 mm × 62 mm × 38 mm |
| Weight | 120 g |
| Preheat time | 1 minute |
| Alarm time | 2 ± 1 s |
Use the PET switch: set it to ON to protect pets up to 15 kg, or set it to OFF to protect pets up to 25 kg.
Turn the MW knob; the middle position gives a 15 m range, while the minimum position reduces the range to 7 m.
Connect terminals 6 and 7 (marked RELAY) to the alarm panel’s normally‑closed zone.
