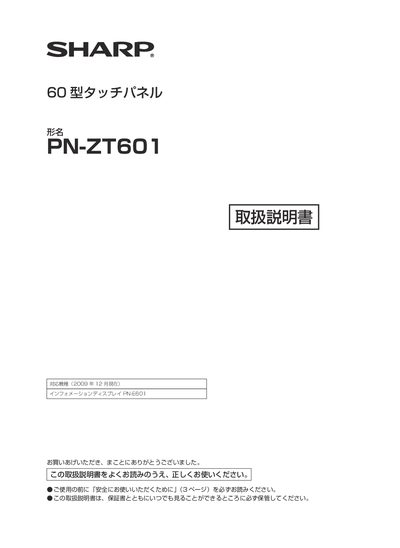

This manual mainly introduces the use of PN-ZT601 touch panel, including safety precautions, operating precautions, names of each part, and the use of touch pens.
This manual explains how to install, configure, and operate the Sharp PN‑ZT601 60‑inch infrared touch panel. It includes safety precautions, accessory checks, and detailed instructions for connecting the panel to a PC and using the supplied touch pen.
Key sections cover safety warnings, touch‑pen preparation, installation procedures, normal operation, troubleshooting tips, and the full technical specifications of the panel. This manual is written in Japanese.
| Detection method | Infrared interruption detection |
|---|---|
| Panel aperture | 1334.4 mm × 52.8 mm |
| Detection area | 1328 mm × 44 mm |
| Number of detection elements | 333 × 187 |
| PC connection | USB 1.1 |
| Power supply | USB |
| Power consumption | 1.8 W |
| Dimensions (W×D×H) | 1418 mm × 87 mm × 836 mm |
| Weight | ≈ 9.5 kg |
Connect the panel to a PC with a USB 1.1 port, then install the driver, setup program, and pen software from the supplied CD‑ROM.
The panel is powered via the USB connection and consumes about 1.8 W of power.
