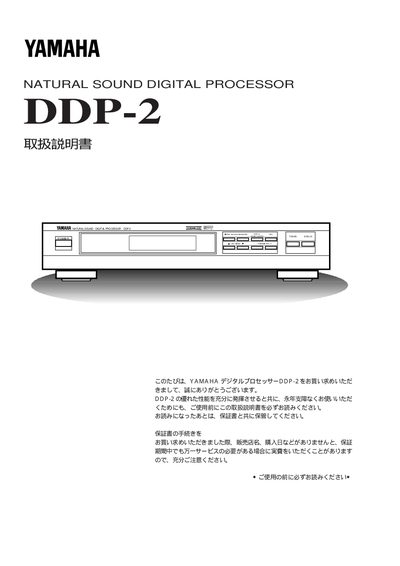

This is a user manual for Yamaha DDP-2 digital processor.
This manual explains how to safely install and operate the Yamaha DDP‑2 digital sound processor. It includes safety warnings, proper handling, and recommended placement to avoid fire or electric shock.
The guide also details the input and output connections, Dolby Digital (AC‑3) settings, power requirements, dimensions, and service information such as warranty period and repair procedures. This manual is written in Japanese.
| Input terminals | 2 (DVD/LD OPTICAL, COAXIAL) |
|---|---|
| Output terminals | 6 (MAIN L/R, CENTER, SURROUND L/R, SUB WOOFER) |
| Power consumption | 17 W |
| Dimensions (W × H × D) | 435 mm × 86 mm × 273 mm |
| Weight | 4.0 kg |
The DDP‑2 consumes 17 W of power.
The warranty period is one year from the date of purchase.
The unit accepts two digital inputs: DVD/LD via OPTICAL or COAXIAL connectors.
The dimensions are 435 mm × 86 mm × 273 mm (W × H × D).
