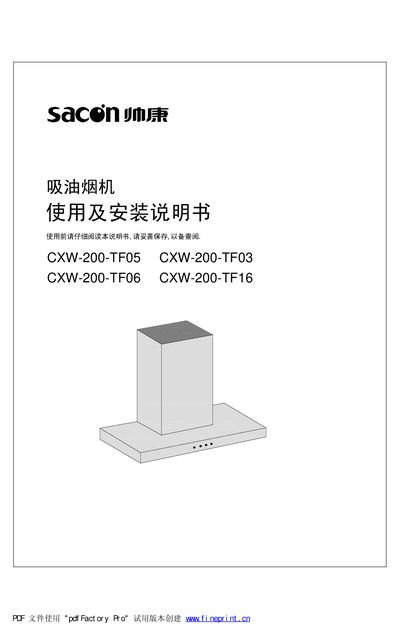

This is a pdf file of the user manual of CXW-200-TF05, CXW-200-TF03, CXW-200-TF06, and CXW-200-TF16 range hoods. It introduces the features, main technical parameters, installation instructions, operating methods, maintenance and service, and environmental protection of the products.
This manual provides step‑by‑step instructions for installing the Sacon CXW‑200 series range hood, including wall and exhaust pipe preparation, mounting hardware, and electrical wiring. It also explains how to adjust fan speed, lighting, timer and alarm functions, and how to perform routine cleaning and maintenance.
Safety precautions, environmental protection guidelines, and a list of accessories are included, along with technical specifications such as airflow, noise level, power consumption and dimensions. The document ends with contact information for after‑sales service. This manual is written in Chinese.
| Air flow | 15 m³/min |
|---|---|
| Noise level | 54 dB |
| Static pressure | >300 Pa |
| Net weight | 22 kg |
Drill a 185 mm wall opening, insert the expansion tube, and secure the mounting bracket and foot with wood screws as shown in the diagram.
Press the “Delay” key, then use the “+” or “–” keys to set a time between 1 and 15 minutes; the timer starts automatically after three seconds of inactivity.
Press the “Wind” (风量) key once for high speed, press it again for low speed, and press a third time to turn the fan off.
